NWPE-225-XP

NWPE-225-XP

2MP External PTZ Camera

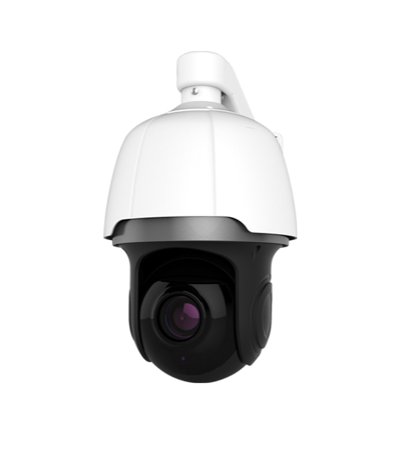

The Infinity NWPE-225-XP is an external PTZ Camera which supports Video Analytics, Auto Tracking, 150m IR, 25x optical zoom and IP67 weather resistance.

2MP 1080P Resolution

Auto Tracking

150m IR

25x Optical Zoom

Specs at a Glance

Some Key facts about the Infinity NWPE-225-XP PTZ

2MP 1080P Resolution

1920x1080 2MP Full HD Resolution

150m IR Night View

Crystal clear images at night thanks to up to 150m IR

25x Optical Zoom

5mm - 125mm zoom

IP67 Water Resistance

Protection against the elements thanks to IP67 Protection

Entry PTZ Models

Infinity PTZ

Infinity Eco PTZ Models

The below shows all of the specifications and features of the Eco PTZ Camera.

  NWPE-218-XP NWPE-225-XP NWPE-533-XP
Camera
Range Eco Eco Eco
NVR Compatibility Infinity Eco, ONVIF Infinity Eco, ONVIF Infinity Eco, ONVIF
VMS Compatibility Infinity VMS, ONVIF Infinity VMS, ONVIF Infinity VMS, ONVIF
Resolution 2MP 1920x1080 5MP 2592×1944
Number of Streams 3 3 3
Image Adjustment Settings Brightness, Colour, BLC, Gain Control, White Balance, Saturation
Day/Night Switch Auto / Manual / Off Auto / Manual / Off Auto / Manual / Off
ONVIF Support
Compression Support H.265 / H.264 H.265 / H.264 H.265 / H.264
Minimum
Illumination
Colour: 0.005 lux @ (F1.2, AGC ON); B&W: 0 lux with IR Colour: 0.005 lux @ (F1.2, AGC ON); B&W: 0 lux with IR Colour: 0.005 lux @ (F1.2, AGC ON); B&W: 0 lux with IR
Lens 5mm - 90mm Zoom 5mm - 125mm Zoom 4.3mm - 142mm Zoom
Wide Dynamic Range (WDR) ✔ (120dB) ✔ (120dB) ✔ (120dB)
Intelligence
Motion Detection ✔ (Video Motion Detection) ✔ (Video Motion Detection) ✔ (Video Motion Detection)
Network
Protocol Support TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, IPv4
Connection 1x RJ-45 Ethernet 10/100Mbps 1x RJ-45 Ethernet 10/100Mbps 1x RJ-45 Ethernet 10/100Mbps
General
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F); Humidity 95% or less (non-condensing)
Power 12V DC ± 10%; PoE+ (IEEE 802.3at) 12V DC ± 10%; PoE/PoE+ (IEEE 802.3at)
Weatherproof Rating IP67 IP67 IP67
Dimensions 335mm x 207mm x 352mm 335mm x 207mm x 352mm 335mm x 207mm x 352mm
Weight <2Kg <2.1Kg <2.1Kg
Datasheet
